EDDY CURRENT SEPARATOR
STAR TRACE Eddy Current Separation devices are an effective way of removing non-ferrous metals from other products. Application such as aluminum cans from municipal waste, aluminum flakes from shredded PET, brass and aluminum from foundry sands, and metals from shredded automobile scrap, other metals such as lead can also be removed. For successful non-ferrous separation, a magnet should be installed prior to an Eddy Current Separator.

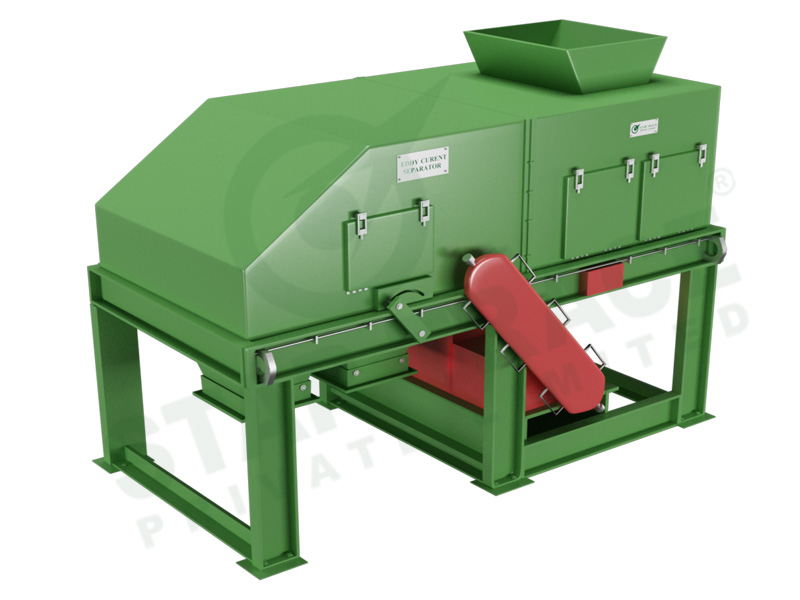

STAR TRACE EDDY CURRENT Separator is ready to be installed for separation. This separator utilizes a powerful Eddy Current Rotor, Conveyor Belt, two variable discharge area and support frame. The optional vibratory feeder provides a consistent flow of material to the Eddy Current Separator. The main principle is that ‘an electrical charge is induced into a conductor by changes in magnetic flux cutting through it’. Moving permanent magnets passing a conductor generates the change in magnetic flux.
Eddy current separator is designed according to the principle that conductor can generate induced current in the high-frequency alternating magnetic field. A strong high-frequent magnetic alternating magnetic field generates on the surface of the sorting roller when it works, thus when conductive non-ferrous metals pass through the magnetic field, eddy current will be induced in the body of nonferrous metals. The eddy current itself will generate the opposite direction magnetic field, non-ferrous metals (such as aluminum, copper, etc.) will leap forward along its transport direction by the performance of magnetic field repulsion so as to separate other non-metallic substances and achieve the purpose of sorting. The main distinguishing criterion is material conductivity and density ratio values; a high percentage of the value of the material is more easily to be separated than the lower material.
Eddy Current Rotor:
STAR TRACE Eddy Current Rotor uses an alternating magnetic field to produce electrical currents in conductive metal. The electrical current generates its own magnetic field around an object which opposes the magnetic field from the Eddy Current. This repulsion diverts the object from the product stream. Mass, conductivity and density influence the force and distance an object will repel.
Working of Eddy Current Separator:
Eddy current separation is based on the use of a magnetic rotor with alternating polarity, spinning rapidly inside a non-metallic drum driven by a conveyor belt. As non-ferrous metals pass over the drum, the alternating magnetic field creates eddy currents in the non-ferrous metal particles repelling the material away from the conveyor. While other materials drop off at the end of the conveyor, the non-ferrous metals are propelled forward over a splitter for separation.
Eddy Current Separation System:
STAR TRACE Eddy Current Separation System encompasses all the equipment above necessary to separate non-ferrous metals and adds ferrous metal separation equipment. It is important to remove ferrous metal prior to exposure to the Eddy Current Separator. Ferrous metal is attracted and held by the strong magnetic force. The ferrous metal will heat up and could burn holes in belt and cause significant damage to the Eddy Current Rotor.
Industries using Eddy Current Separator:
- Foundry Industries.
- Glass Industries.
- Timber Industries.
- Plastic Industries.
- Boiler Industries.
- E-Waste Industries.
- Aluminium Industries
- Electronic waste disposal (refrigerator dismantling line).
- Separation of aluminium cans and ferrous metals.
- Separate non-ferrous metals from the bottom ash of boiler.
- Separate aluminium or copper block from the sections of abandoned cars.
- Separate non-ferrous metals from the glass scrap.
- Separate non-ferrous metal impurities in some production lines(such as plastic recycling production line).
- Separate non-ferrous metals from recycled plastic doors and windows.
- Separate non-ferrous metals from the wood.
- Rich experience in design and production can ensure mature product technology, stable performance and reliable quality.
- Mass production, mature technology, stable quality.
- Simple structure, easy and convenient to install, operate and maintain.
- Complete secure facilities, full functions.
- Beautiful appearance, retainer plates and door panels are stainless steel wiredrawing board, high-grade lock.
|Feed||Rotor Motor||Belt Motor||Vibration Motor||Belt Width||A||B||C||D||E|
|ECMS - 300||5.5 KW||0.4 KW||0.12KW x 2||450||1380||4000||3225||1850||1800|
|ECMS - 450||5.5 KW||0.75 KW||0.12KW x 2||600||1530||4000||3225||1850||1800|
|ECMS - 600||5.5 KW/7.5 KW||0.75 KW||0.12KW x 2||750||1680||4000||3225||1850||1800|
|ECMS - 750||7.5 KW||0.75 KW||0.25 KW x 2||900||1830||4000||3225||1850||1800|
|ECMS - 900||7.5 KW/11 KW||1.5 KW||0.4 KW x 2||1100||2030||4000||3225||1850||1800|
|ECMS - 1200||11 KW||1.5 KW||0.4 KW x 2||1400||2330||4000||3225||1850||1800|
|ECMS - 1400||12.1 KW||2 KW||0.4 KW x 2||1600||2530||4000||3225||1850||1800|
|Capacity Per 1000mm Feed Width (Tonnes/Hour)|
12 - 30 mm
30 - 70 mm
50 - 150 mm
