Funnel Magnets

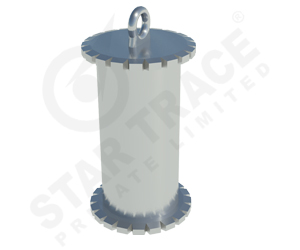

Funnel Magnet

Powerful anistropy Permanent magnets with special arrangement are enclosed in a S.S. cylinder. The top plate of the magnetic filter is provided with number of grooves to guide the slurry to a specific path to give the maximum efficiency.

This is a very useful tool to filter out all iron impurities from any liquid very useful for ceramic glazes, colours, oil and chemical industries can be supplied with or without funnel.

Technical Specification

Model No Dia in mm Length in mm Gauss Power
FM-701 55 150 2500-3000
FM-702 100 200 2500-3000
FM-703 75 200 2500-3000

Model No. Dia in mm Length in mm Gauss Power
FM-705 55 150 +8000 and above
FM-706 100 200 +8000 and above
FM-703 75 200 +8000 and above
