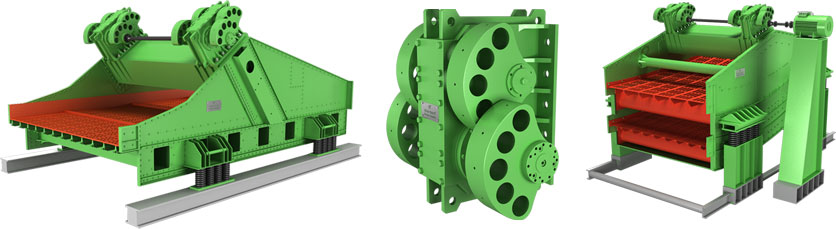

GEARED FORCE EXCITER
Star Trace is one of the leading company which manufacturing the Geared Force Exciter. Star Trace Geared Force Exciter is used in the heavy-duty gearbox to create the linear vibrations for volumed material handling with maximum feed rates. Our Geared force exciter provides maximum opearational efficiency.
Working Principle
Star Trace gear box is having two types of counter rotating shafts. Each counter shafts having two counter weights to produce linear motion for vibrating feeders, screens and so on. The special care should be taken while manufacturing the counter weights so that the static moment is delivered as we required.The special care should be taken while manufacturing the counter weights so that the static moment is delivered as we required. The gearbox contains hardened and ground gears in a cast housing. The additional holeas are provided in the counter weights is used for adjust the mass according to the required static moment. Our geared force exciter is customized products and depends upon the need with input speed ranging from 750-1500rpm and dynamic moments from 500kgcm-170,000kgcm. The bearings are accommodated in oil-lubricated due to high-speed operation of the gears.
Applications:
Geared Exciters used in Sizing, feeding, conveying, Desliming, Dewatering, extraction, purification, segregation of bulk material in the mining, iron, steel, cement, fertilizer, chemical and ceramics industries.
