MAGNETIC PULLEYS

INTRODUCTION:

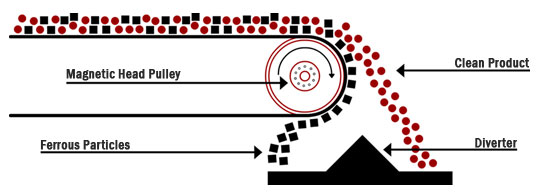

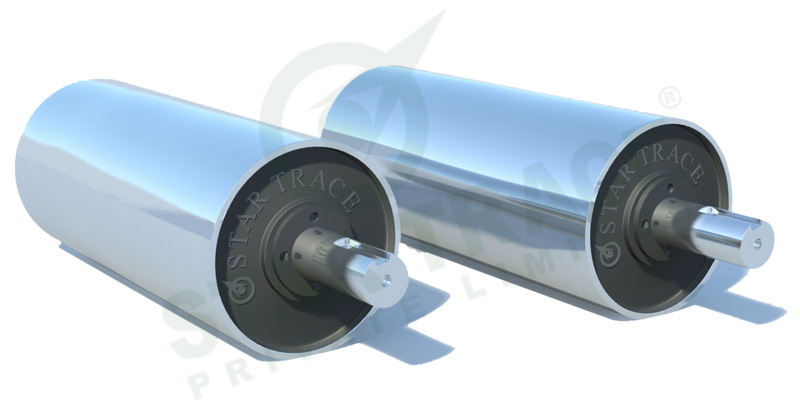

STAR TRACE's Magnetic Head Pulley provides effective way to remove ferrous contaminant from powdery, schistose and granulate material, like ore, coal, waste, sand and etc. Magnetic head Pulley is composed of 360 degree magnetic core protected by rotatable stainless steel cover and a axis of rotation. In practice, surface of Pulley will be wrapped by belt, so as material flow over it. Ferrous contaminant will be attracted at belt and be conveyed out of material. In many applications, it’s possible to replace an existing head pulley with a permanent magnetic head pulley, on a size-for- size basis. A wide range of diameters, widths, and shaft sizes are available.

DESIGN ADVANTAGE:

STAR TRACE Magnetic head pulleys are built using our exclusive flux control magnetic circuit. This design ensures continuous magnetism around the entire circumference of the pulley-no dead spots. For less critical applications, a conventional magnetic circuit design is also offered.

TYPES OF STRENGTH:

Light duty

For general use with burden depths up to 50mm. Belt speeds to 1.8m/s. Good for secondary Clean up of misc. tramp iron and fines.

Medium Duty

For general use with burden depths up to 75mm. Belt speeds to 2m/s. Used in Construction & Demolition and Material Recovery Facility.

Heavy Duty

For general use with burden depths up to 100mm. Belt speed to 2m/s. Used in Mining, Foundry, and Heavy Duty.

Applications

• Sand
• Food
• Slag
• Mining
• Glass
• Plastics
• e-waste
• Foundry
• Rubber
• Ceramics
• Chemical
• Wood chips
• Pharmaceual
• Pallet Recycling
• Glass Recycling
• Paper & Pulp
• Pigment & Paint
• Portable Crushing Plants
• Wood & plastic Recycling
• Crushed or Broken stone
• Shredded Tyre Processing
• Processing of Municipal waste
• Coal cleaning/ de-sulfurization
• Recovery of metal in ore processing
• High quality carbon/quartz cleaning

Features

• The Magnetic head pulleys can be installed easily at conveyor discharge.
• They give complete magnetic protection over the entire face of the pulley for removing ferrous contaminants.
• The pulleys either use ceramic magnets or powerful rare earth magnets.
• Maximum magnetic induction on the pulley's surface is selected within the range of (1000-4500).
• Optimal conditions for magnetic separation are created due to the minimized distance between material and seperator’s effective surface.
• Unique magnetic systems are composed of powerful Rare earth magnets. Magnets are thoroughly tested to ensure that the required properties are present and to guarantee long equipment life and high performance.
• Magnetic head Pulleys come in different sizes, various diameters and widths are available on request. Shaft dimensions are to customer specifications.
• Four available Hub styles, Recessed Hubs, Flush Hubs Extended Hubs, or, No Hubs.
• Removable Steel Shaft.
• Powerful Permanent Magnet Circuit.
• Straight hub with keyway.
• Taper lock on some models, call factory to verify.
• Axial/Radial/Multi pole magnetic circuit design.
• Lifetime guarantee on magnetism.
• Heavy duty all welded construction.
• Heavy duty stainless steel shell.
• Uniform depth of field on face of pulley.
• Flat or Crowned Pulley Face.
• Smooth or lagged surface.
• Precision Machined keyways.
• Taper Locks and Set Screws.
• Fixed Shaft or No Shaft.
• Offered in Rare Earth Neodymium or strontium Ferrite.

Benefits

• No operating costs.
• Prevent costly breakdowns.
• Cost effective separation for material depth.
• Excellent for secondary separation after an overhead or drum magnet.
• Increases product purity in food, chemicals, plastics, glass by removing unwanted iron.
• Protect processing equipment like crushes, grinders, pulverizers, screens and other processing equipment from ferrous metal damage.

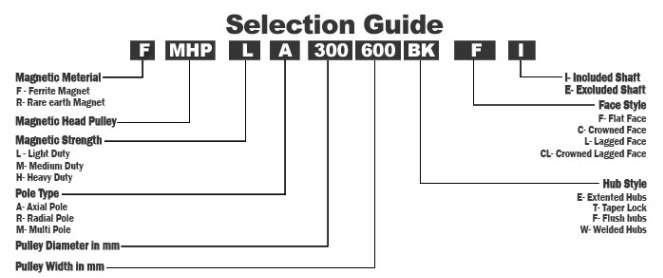

Specification:

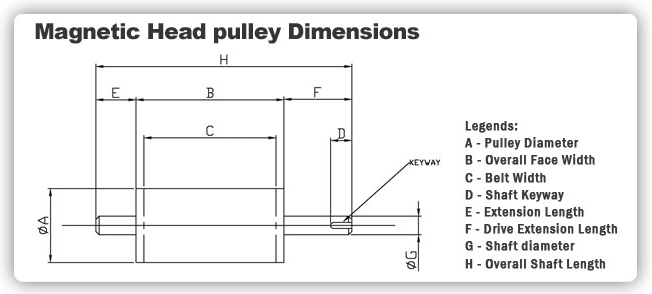

(A) PULLEY DIAMETER in mm	(B) OVERALL FACE WIDTH in mm	(C) BELT WIDTH in mm	(D) KEYWAY LENGTH in mm	(E) EXTENSION LENGTH in mm	(F) DRIVE EXTENSION LENGTH in mm	(G) SHAFT DIAMETER in mm	KEYWAY SIZE in mm	APPROX WEIGHT in kg
200	250	200	75	150	230	35	10 X 5	30
	300	250	75	150	230	35	10 X 5	34
	350	300	75	150	230	35	10 X 5	45
	400	350	75	150	230	35	10 X 5	50
	450	400	75	150	230	35	10 X 5	56
	500	450	75	150	230	35	10 X 5	59
	550	500	75	150	230	35	10 X 5	63
	650	600	75	150	230	35	10 X 5	70
	800	750	75	150	230	35	10 X 5	92
	950	900	75	150	230	35	10 X 5	104
300	350	300	100	200	300	50	12.5 X 6.5	104
	400	350	100	200	300	50	12.5 X 6.5	117
	450	400	100	200	300	50	12.5 X 6.5	126
	500	450	100	200	300	50	12.5 X 6.5	153
	550	500	100	230	330	50	12.5 X 6.5	164
	650	600	125	230	330	70	16 X 8	189
	800	750	125	230	350	70	16 X 8	230
	950	900	125	230	350	70	16 X 8	272
	1100	1050	125	250	380	70	16 X 8	313
	1250	1200	125	250	380	70	16 X 8	358
380	350	300	100	200	300	50	12.5 X 6.5	137
	400	350	100	200	300	50	12.5 X 6.5	167
	450	400	125	230	350	60	16 X 8	169
	500	450	125	230	350	60	16 X 8	209
	550	500	125	250	380	60	16 X 8	223
	650	600	125	280	400	75	19 X 10	259
	800	750	150	280	430	75	19 X 10	335
	950	900	150	280	430	75	19 X 10	394
	1100	1050	150	300	450	75	19 X 10	457
	1250	1200	150	300	450	75	19 X 10	518
450	350	300	125	230	350	60	16 X 8	178
	400	350	125	230	350	60	16 X 8	203
	450	400	125	230	350	60	16 X 8	234
	500	450	125	230	350	60	16 X 8	297
	550	500	125	250	380	75	19 X 10	306
	650	600	125	280	400	75	19 X 10	367
	800	750	150	280	430	75	19 X 10	468
	950	900	150	280	430	75	19 X 10	574
	1100	1050	150	300	450	75	19 X 10	673
	1250	1200	150	300	450	75	19 X 10	772
500	400	350	125	230	350	60	16 X 8	248
	450	400	125	230	350	60	16 X 8	275
	500	450	125	250	380	60	16 X 8	311
	550	500	125	250	380	60	16 X 8	349
	660	600	125	280	400	75	19 X 10	414
	810	750	150	280	430	75	19 X 10	554
	960	900	150	280	430	75	19 X 10	671
	1110	1050	150	300	450	75	19 X 10	794
	1270	1220	150	300	450	75	19 X 10	907
	1420	1370	175	300	480	75	19 X 10	1037
	1570	1520	175	300	480	75	19 X 10	1175
600	400	350	125	230	350	75	19 X 10	342
	450	400	125	230	350	75	19 X 10	362
	500	450	125	250	380	75	19 X 10	369
	550	500	125	250	380	75	19 X 10	432
	660	600	125	280	400	75	19 X 10	527
	810	750	150	330	480	85	22 X 11	693
	960	900	150	330	480	85	22 X 11	815
	1110	1050	175	350	530	100	25 X 12.5	929
	1270	1220	175	350	530	100	25 X 12.5	1040
	1420	1370	200	380	580	100	25 X 12.5	1217
	1570	1520	200	400	600	100	25 X 12.5	1357
750	500	450	125	350	500	100	25 X 12.5	677
	550	500	125	350	530	100	25 X 12.5	711
	660	600	125	350	530	100	25 X 12.5	855
	810	750	150	400	580	110	25 X 12.5	1085
	960	900	150	400	580	110	25 X 12.5	1278
	1110	1050	175	450	630	125	32 X 16	1530
	1270	1220	175	450	630	125	32 X 16	1737
	1420	1370	230	500	760	140	32 X 16	1937
	1570	1520	230	480	730	140	32 X 16	2167
900	500	450	150	300	450	100	25 X 12.5	997
	550	500	150	300	450	100	25 X 12.5	1040
	660	600	175	300	530	110	25 X 12.5	1217
	810	750	175	300	530	110	25 X 12.5	1494
	960	900	200	350	560	125	32 X 16	1814
	1110	1050	200	350	560	125	32 X 16	2093
	1270	1220	230	380	660	140	32 X 16	2408
	1420	1370	280	380	710	150	38 X 19	2723
	1570	1520	330	430	810	175	38 X 19	2993
