Magnetic Coolant Separator

 Magnetic Coolant Separator


STAR TRACE‘s specialized in manufacturing a wide range of coolant Filtration systems. A team of committed professionals with more than one decade of experience are available, who have designed, developed and supplied Filters to various Industries. Star Trace filters are working in different Industries like Engineering, Automobile, Bearings, Spindles, Textile Machinery Rolling Mills, Wire drawing etc., The filters have been supplied to both Indigenous and Imported Machines and also used as original fitment by many machine tool Builders. The company has wide range of standard models to choose from and special / larger system can be designed and supplied as per requirement and application.

Application

Magnetic Filter are suitable for Cylindrical, Centreless, surface & Internal Grinding Machines, Thread Grinders, Honing Machines, Rolling Mills etc., It is also used as a pre-filter alongwith other types of coolant filters like Paper band or Hydro cyclone filters. The unit can be fitted on existing.

Construction & Working Principle

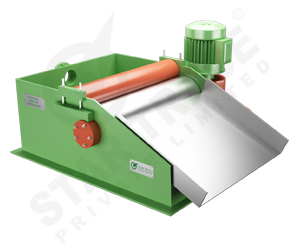

Magnetic Filter consists of powerful magnetic drum driven by double reduction worm geared motor. The contaminated coolant from the machine is passed is through the gap between the drum and the body. The dust particles are attracted by the drum and a rubber roller squeezes the swarf which is scrapped off by a scrapper plate. The clean coolant is collected is the coolant tank for recirculation to the machine.

Advantages of Magnetic Filter


Removes ferrous particles from coolants.
Improves surface finish on components.
Increases coolant life & wheel life.
Frequent cleaning of coolant tank is avoided.
Con be used as a pre-filter for other filtration systems.

Specifications of Magnetic Separator
MODEL FLOW RATE Ltr/Min L W MAGNETIC DRUM RUBBER ROLLER MOTOR H.P.
DIA LENGTH SPEED rpm DIA LENGTH
ST 50 50 225 400 120 185 2.5 6.0 185 0.25
ST 70 70 300 400 120 265 2.5 60 265 0.25
ST 100 100 400 400 120 365 2.5 60 365 0.25
ST 150 150 530 450 120 490 2.5 60 490 0.50
ST 200 200 630 500 120 590 2.5 60 590 0.50
ST 300 300 830 525 120 790 2.5 60 790 0.50
ST 500 500 630 500 150 590 2.5 80 590 0.75
ST 1000 1000 830 525 150 790 2.5 80 790 0.75
ST 1500 1500 1050 750 200 1000 2.5 100 1000 1
